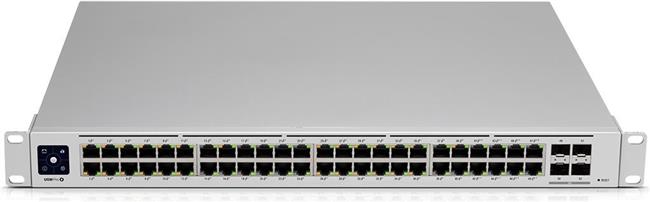

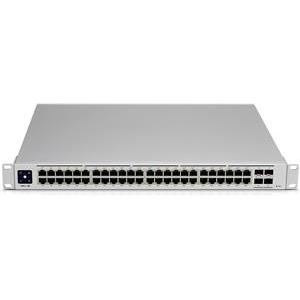

UniFi 48Port Gigabit Switch with 802.3bt PoE, Layer3 Features and SFP+

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili UniFi 48Port Gigabit Switch with 802.3bt PoE, Layer3 Features and SFP+

Proizvođač: Ubiquiti Networks
Šifra: 1388723
Kataloški broj: USW-PRO-48-POE-EU
Jamstvo: 24
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


UniFi 48Port Gigabit Switch with 802.3bt PoE, Layer3 Features and SFP+


Switch Pro 48 PoE
In Stock
SKU: USW-Pro-48-PoE-EU
Summary
Datasheet
Installation Guide
A 48-port, Layer 3 PoE switch.
Features:
(40) GbE, PoE+ RJ45 ports
(8) GbE, PoE++ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input for power redundancy
600W total PoE availability

Managed with the UniFi Network application: Version 5.10.5 and later

Mechanical
Dimensions 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72")
Weight Without mounting brackets: 6.25 kg (13.78 lb)
With mounting brackets: 6.34 kg (13.98 lb)
Enclosure material SGCC steel
Hardware
Networking interface (48) 10/100/1,000 RJ45 ports
(4) 1/10G SFP+ Ethernet ports
Management interface Ethernet In-Band
Total non-blocking throughput 88 Gbps
Switching capacity 176 Gbps
Forwarding rate 130.944 Mpps
Power method Universal input, 100—240V AC/50-60 Hz
USP RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A
Power supply AC/DC, internal, 660W
Supported voltage range 100—240V AC
Max. power consumption 60W (Excluding PoE output)
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
PoE
Total available PoE 600W
PoE interfaces
Ports 1-40
Ports 41-48
PoE/PoE+ (pins 1, 2+; 3, 6-)
60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE wattage per port by PSE
PoE+
PoE++
32W
64W
Voltage range PoE mode 44—57V
Voltage range PoE+ mode 50—57V

Dodatna Bonus jamstva za uređaj (opcija):
Zaštita PGR 5 godina (2+3) - 100,00 €
* jamstva su ponuđena automatiziranim odabirom, za informacije i sva pitanja obratite se prodavačima

Osnovne karakteristike
Portova: 48
Brzina prijenosa podataka: 1 Gbps
Kućište: Ugradbeno 1U
POE: Da
Konektori
SFP: 4


*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja[o]protis.hr
