Zaslon TFT 3.2” za RPi, Joy-it TFT3.2-V2
Proizvođač: | Joy-it |
Šifra: | 1353348 |
Kataloški broj: | RB-TFT3.2-V2 |
Jamstvo: | 12 |
Raspoloživost: | (Dobavljivo) |
Prosječna ocjena: 0,00 | Glasova: 0 |
Ocijeni
ovaj proizvod
|
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 1,47 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
3.2 " Display

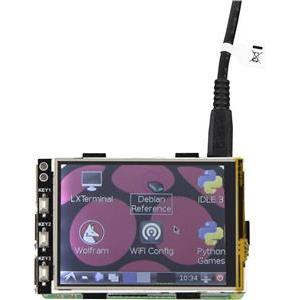

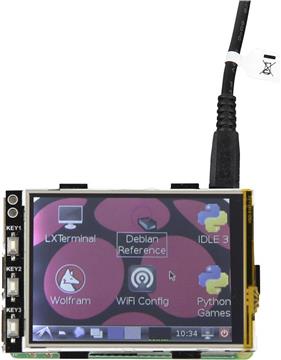

With the 3.2 Inch TFT Touchscreen-Display you can easily build a Mini-Tablet-PC based on an Raspberry Pi.
The display, with a maximum resolution of 320x240 pixels, can be attached to the GPIO connections so that you won‘t need any mounting-skills.
The Display offers 3 free programmable buttons.
Specifications
Display
3.2" (8.13cm)
Touchscreen Controller
XPT2046
Resolution
320x240 Pixel
Touchscreen Technology
Resistive Touch Screen, Single-Touch
IC Driver
SSD1289
Colors
65.536
Interface
SPI
Operating Temperature
0 - 70°C
Viewing Angle
Horizontal: up to 45°, Vertical (Top): up to 45°, Vertical (Bottom): up to 20
Color
Black
Special Features
LED backlight, can be plugged directly onto the GPIO header, 3 freely assignable buttons: connected to GPIO12, GPIO16 & GPIO18
Compatible to
Raspberry Pi A, B, B+, 2B, 3B, 3B+, 4B
Dimensions
85 x 20 x 60mm
Weight
52 g
Items Shipped
3.2" display module, stylus
