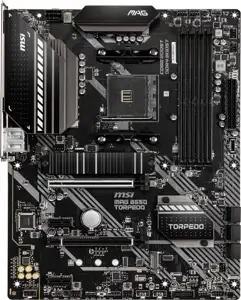

Matična ploča AM4 MSI B550 TORPEDO ATX (M.2 Port, PCIe 3.0 x 4, NVMe PCI:2 PCIe:2 RAM:4)
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča AM4 MSI B550 TORPEDO ATX (M.2 Port, PCIe 3.0 x 4, NVMe PCI:2 PCIe:2 RAM:4)
| Proizvođač: | MSI |
| Šifra: | 1345894 |
| Kataloški broj: | 7C91-017R |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
shape factor ATX
Socket AMD AM4
chipset AMD B550
CPU-Compatibility Ryzen 5000, Ryzen 4000G, Ryzen 3000, without TDP limitation (Manufacturer-list)
VRM 6 real phases (4+2), PWM-Controller: RT8894 (max. 6 real phases)
MOSFETs CPU 8x 46A 4C029N/?4C024N
MOSFETs SoC 4x 46A 4C029N/?4C024N
RAM 4x DDR4 DIMM, dual PC4-38933U/?DDR4-4866 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242)
external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/?s, B550), 1x USB-A 3.1 (10Gb/?s, B550), 2x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x jack, 1x toslink, 1x PS/?2 Combo
Internal connectors 1x USB-C 3.0 Key-A Header (5Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 6x SATA 6Gb/s (B550), 1x TPM-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 6x fan 4-Pin, 1x pump 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches USB BIOS Flashback (external), LED switch (internal)
Audio 7.1 (Realtek ALC1200)
Graphics iGPU
Wireless not available
RAID level 0/?1/?10 (B550)
Multi-GPU AMD 2-Way-CrossFireX (x16/?x4)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
Lighting not available
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2-passive cooler
Warranty three years (from date of manufacture, handling by merchant)
USB nomenclature Link
| Osnovne karakteristike | |
|---|---|
| Socket: | AM4 |
| Format ploče: | ATX |
| CPU podrška: | AMD Ryzen |
| Memorija: | DDR4 |
| Chipset: | AMD B550 |
