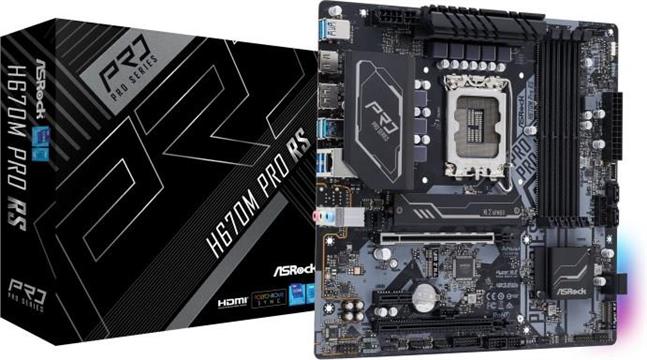

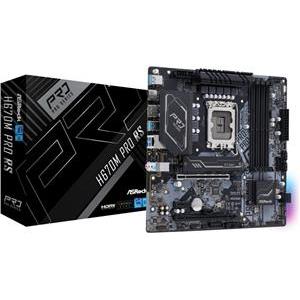

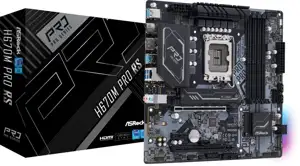

ASRock H670M Pro RS - motherboard - micro ATX - LGA1700 Socket - H670
| Proizvođač: | Asrock |
| Šifra: | 1370209 |
| Kataloški broj: | 90-MXBHK0-A0UAYZ |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
133,00 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 4,10 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
Introducing the new H670 series of motherboards from ASRock. The H670M PRO RS supports 12th Generation Intel® Core™ processors. Experience a powerful performance, DDR4 memory and optimized power phase design. The innovative design of the H670M PRO RS has built-in RGB headers, users can customize and synchronize RGB LED devices with Polychrome RGB Sync-certified accessories. Underneath its appearance lie plentiful powerful features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers.
µATX
Sockel
Intel 1700
Chipsatz
Intel H670
CPU-Kompatibilität
Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Erweiterungsslots
1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2242), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280), 1x M.2/?E-Key (PCIe/?Intel CNVi, 2230)
Anschlüsse extern
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.1 (10Gb/?s, H670), 4x USB-A 3.0 (5Gb/?s, H670 via Hub ASM1074), 1x Gb LAN (Intel I219-V), 3x Klinke
Anschlüsse intern
1x USB-C 3.0 Key-A Header (5Gb/?s, H670), 2x USB 3.0 Header (5Gb/?s, 4x USB 3.0, H670), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (H670), 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Kühlung
1x CPU-Lüfter 4-Pin, 1x CPU-Lüfter/?Pumpe 4-Pin, 4x Lüfter/?Pumpe 4-Pin
Header Beleuchtung
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
Buttons/Switches
N/?A
Audio
7.1 (Realtek ALC897)
Grafik
iGPU
Wireless
N/?A
RAID-Level
0/?1/?5/?10 (H670)
Multi-GPU
AMD 2-Way-CrossFireX (x16/?x4)
Stromanschlüsse
1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Beleuchtung
RGB, 1 Zone (Seite rechts)
BIOS
1x 16MB (128Mb)
Besonderheiten
Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), 1x M.2-Passivkühler, Onboard TPM 2.0 Unterstützung (Intel PTT)
| Osnovne karakteristike | |
|---|---|
| Socket: | 1700 |
| Format ploče: | mATX |
| CPU podrška: |
Intel 14. gen Intel 13. gen Intel 12. gen |
| Memorija: | DDR4 |
| Chipset: | Intel H670 |
