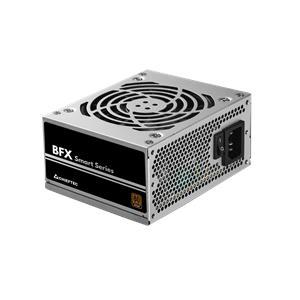

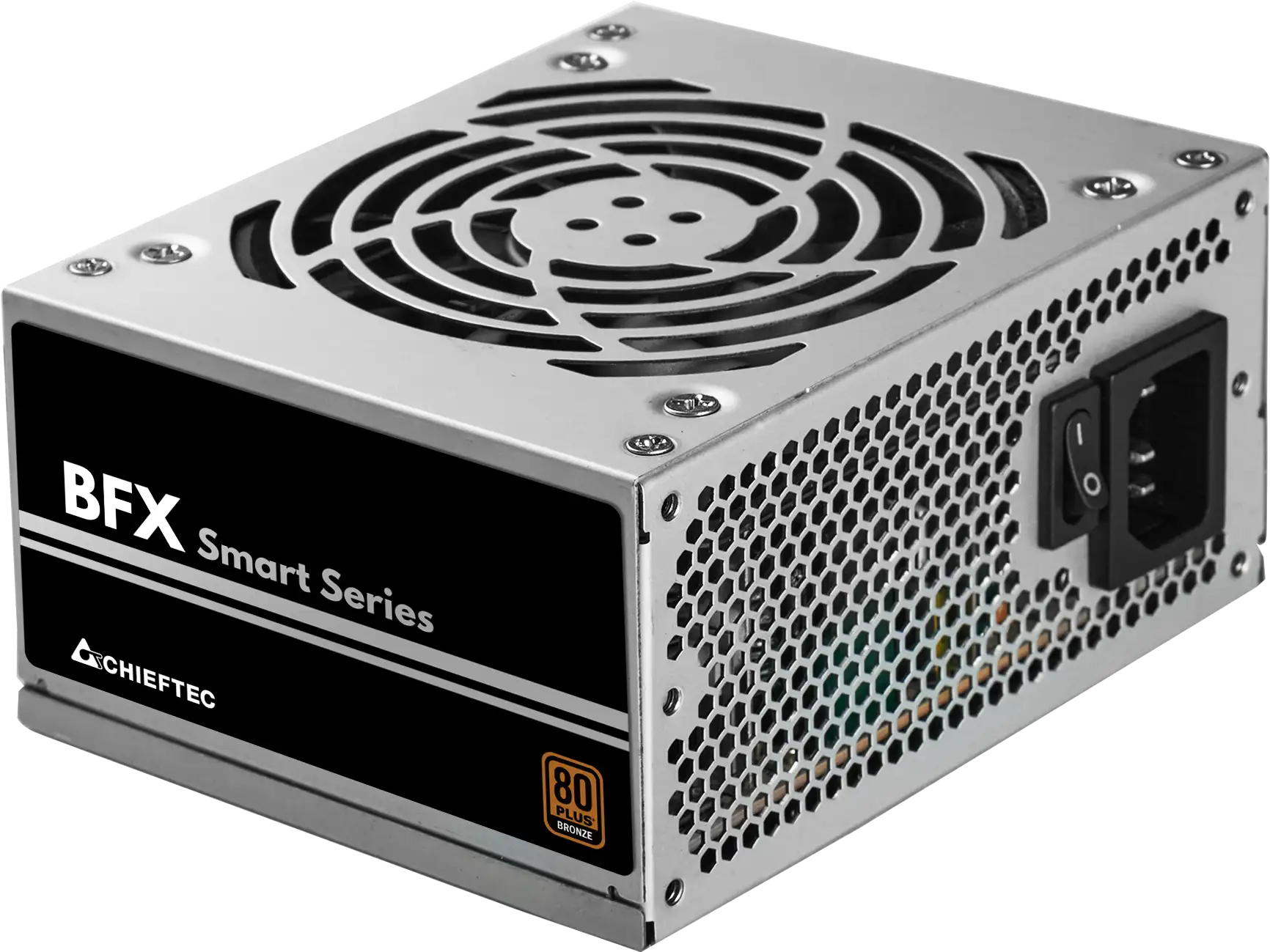

Chieftec Smart Series 350W SFX power supply
| Proizvođač: | Chieftec |
| Šifra: | 1361766 |
| Kataloški broj: | BFX-350BS |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
53,80 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 1,66 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
POWER : 350W CONNECTIONS : 1x 20 + 4pin Motherboard Connector 1x 8 PIN EPS (4 + 4) Connector 1x 8 PIN PCIe (6 + 2) Connector 3x SATA Connectors 2x IDE (molex) Connector 1x Floppy Connector FAN : 1 × 90mm silent fan WEIGHT : 1 kg DIMENSIONS : 100 × 125 × 64 mm (suitable for ATX 12V v2.3 systems) ADDITIONALLY : Active PFC (0.9) 80PLUS Bronze AFC (Automatic Fan speed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over-temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection)
TECHNICAL DATA Model Smart 350W
Article no. BFX-350BS
EAN code 0753263077486
Weight (without/with package) 1kg / 1.3kg
AC Input 100 - 240V / 5.0A
Frequency 47 - 63Hz
+5V 18.0A
+3,3V 18.0A
+5V & +3,3V combined 110W
+12V1 29.16A
+12V2 -
+12V1, +12V2 combined 349.92W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12.5W
Maximum Power 350W
Connectors 20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 1
SATA 3
MOLEX/FLOPPY 2/1
Cable length (mm) 20+4 PIN ATX 350
8 PIN EPS(4+4) 350
8 PIN PCIe (6+2) 350
SATA 3 x 250
MOLEX/FLOPPY 2 x 150 / 150
Features ATX12V Version ATX 12V 2.3
Efficiency 80 PLUS® Bronze
Dimension (DxWxH) 100mm x 125mm x 64mm
PFC Active PFC (0,9)
Fan 90mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over-temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage protection)
Warranty 24 Months
| Osnovne karakteristike | |
|---|---|
| Snaga [W]: | 350 |
| Modularno: | Ne |
Učinkovitost:
|
Bronze (85%) |
