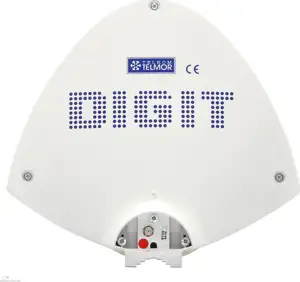

DVB-T/T2 Antenna TELMOR Digit Activa (white). Antena za brod ili kamp prikolicu i slično. Ugrađeno DGITActiva pojačalo 18 dB.. Vodootporna.Ugrađen GSM filter. Jednostavna ugradnja bez upotrebe alata. The Digit Activa A6080 DVB-T/T2 antenna has been designed to receive DVB-T signals in VHF (174-230 MHz) and UHF (470-790 MHz) bands. The built-in amplifier increases signal levels only in the UHF band. The compact antenna can be used in areas with decent signal levels. It can be mounted (in horizontal position) on roofs, walls, balconies, as well as on camping trailers/caravans.The antenna can be mounted (in horizontal position) on roofs, walls, balconies, as well as on camping trailers/caravans.Very low standing wave ratio (SWR?2.2) shows very good impedance matching of the antenna.Weather-resistant housing of the antenna made of high quality ABS plastic ensures low weight and guarantees long life of the device.Distinguishing features Designed for receiving DVB-T/T2 broadcasts Built-in DIGITactiva amplifier Strong attenuation of GSM signals, SWR?2.2, Weather-resistant Simple installation without any toolsThe built-in amplifier can be powered directly from the input of a DVB-T/T2 tuner/receiver (5 VDC) or, if not possible, from the included power supply.For indoor use we recommend the A6030 antenna.Below we present results of measurements of DIGIT antenna without amplifier - gain, directional characteristics and polar plot. In the case of the Digit Activa A6080 antenna, it is necessary to add the gain of the built-in amplifier (18 dB +/-4 dB).Antenna gain in UHF band as the function of frequencyDirectional characteristicsPolar plotSpecificationsNameDIGITactivaCodeA6080Frequency rangeUHF 470-862 MHzVHF 174-230 MHzPolarization (UHF)Horizontal (H)Gain in UHF band18 ± 4 dBGain in VHF band0 dBStanding wave ratio (SWR)?2.2Noise figure2 dBMax output level (two TV multiplexes)103 dBµVH beamwidth (3 dB)75oV beamwidth (3 dB)130oFront/back ratio> 15 dBPower5…24 VDC (or 12 VDC from the included PSU)Current consumption45 mA / 12 VDCMast diameter range25...45 mmWeight0.8 kg
