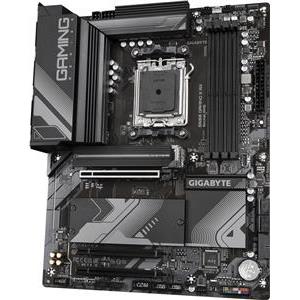

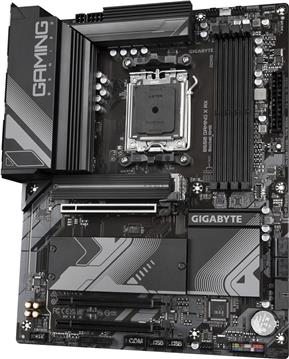

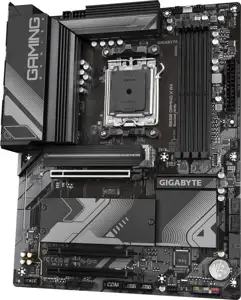

Edition B650 Gaming X AX
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)

DDR5 - 4400(OC)
DDR5 - 4800
DDR5 - 5200
DDR5 - 5600(OC)
DDR5 - 6000(OC)
DDR5 - 6200(OC)
DDR5 - 6400(OC)

Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors

DisplayPort 1.4
HDMI 2.1

Internal Connectivity
Expansion Slots

3 x M.2, 22-80/110, PCIe Gen4x4
2 x PCIe 3.0 x16 (x1 Bandwidth)
1 x PCIe 4.0 x16
4 x SATA 6GB/s

SATA Support SATA3
RAID Support via
Storage Mode Support

RAID 0
RAID 1
RAID 10

Internal I/O

1 x 24-pin (Power)
1 x 4-pin (Power)
1 x 4-pin CPU Fan Connector
1 x 8-pin (Power)
2 x Addressable Digital RGB Header
1 x Clear CMOS jumper
1 x CPU Cooler LED/RGB LED Strip Extension Header
1 x Front Panel Audio Header
1 x Front Panel Connector
3 x M.2
1 x Reset Button
2 x RGB LED connector
4 x SATA III - 6Gb/s
2 x System Fan header
1 x System Fan/Water Pump Header
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2x2 Connector
1 x Water Cooling fan header

External Connectivity
Network Interface Type

802.11ax Wi-Fi 6E LAN
Wired 2.5 Gigabit LAN (10/100/1000/2500)

Network Chip/Modules

1 x 2.5 Gigabit LAN
1 x 802.11ax WiFi 6E + BT5.2

Rear I/O Connectors

1 x 10/100/1000/2500 (LAN)
1 x DisplayPort 1.4
1 x HDMI 2.1
1 x Line In
1 x Line Out
1 x Mic-In
1 x Q-Flash Plus Button
1 x S/PDIF-Out (Optical)
2 x SMA antenna connectors (2T2R)
3 x USB 2.0
3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C

Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
