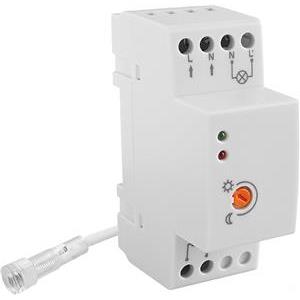

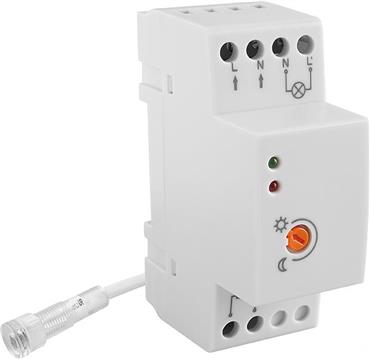

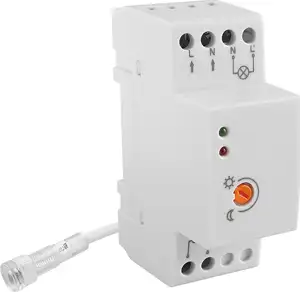

The light sensor is used to automatically turn on the lights at dusk and off at dawn. This saves electricity. It consists of a sensor, which is protected in a waterproof housing, and an adjustable switch which can be used to adjust the sensitivity from 5 - 50 LUX. The sensor and the switch connect a 90cm cable. The switch is suitable for mounting on a DIN rail in an electrical cabinet. Installation: first make sure that there is no voltage in the mains determine the correct position of the sensor: it must be placed above the lamp to avoid poor performance drill a 13m diameter hole in the surface for the sensor gently insert the sensor head into the mounting hole connect the lamp (consumer) and power supply (mains) to the switch - the wiring diagram is given in the enclosed instructions after the installation, lower the el. current and check the operation of the sensor Technical specifications: Voltage: 220-240V AC / 50-60Hz Maximum permissible load: 4800W / 20A Switch dimensions: 66 x 36 x 90mm Weight: 130? Sensor hole mounting diameter: 13mm Sensor protection standard: IP54 Switch protection standard: IP20 Cable length from sensor: 90cm
