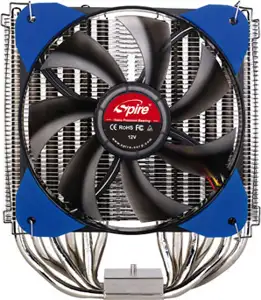

Socket 1156 / 1155 / 1366 / 775 / 2011
Dimensions
Heat sink : 140×47×160 mm (l × w × h)
12VDC Fan : 120×120×25 mm
Material Al+Cu
Heatpipe Six (6) 6mm all copper U-shaped direct
Bearing Nano Bearing
Rated speed
Cooler : 600~1800 RPM +/-10%
Only Fan : 600~1800 RPM +/-10%
Rated power 2.16 W
Rated Voltage 12 V
Noise level 10~22 dBA
Air flow 74.63 CFM Max.
Current 0.18 A
Remark Note:Width of case should be more than 190mm, otherwise, can not fit.
Connector 4 PIN PWM (2510)
Application Intel Core i3
Intel Core i5
Intel Core i7 Cooler
Intel LGA 2011
Intel LGA775 (Prescott)
AMD FM1 (AMD Radeon HD 6530D)
AMD Phenom II (AM2/AM3)
TDP 150 W
Thermal resistance 0.097 oC/W
Thermal paste BlueFrost - SP802 blue grease(Injection Tube,0.5g)
Static Pressure 2.86 mmH2O
Life hours 70000H
Operating Temperature -10~70 oC
Storage Temperature -40~70 oC
Warranty 5 years
Packaging type Color Box
Package includes clip 1 set / sp-802 grease / manual
N.W 0.73 KG
Features 120mm BlackStar 7 blade fan design High Quality
Long MTBF Nano precision bearing Anti-Vibe universal rubber fan mountings (crews)
Supports AM2/AM3 and 775/1155/1156 & 1366 &2011 All catena
UPC Code 6943051205861
