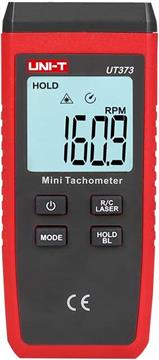

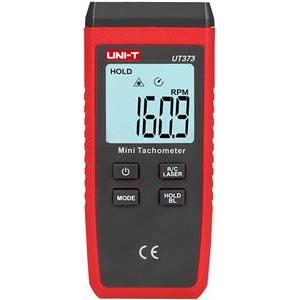

Instrument brojač okretaja mini UT-373, Uni-trend
| Proizvođač: | Uni-trend |
| Šifra: | 1311915 |
| Kataloški broj: | UT-373 |
| Jamstvo: | 12 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
29,80 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 0,92 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
UT373 je stabilan, siguran i pouzdan beskontaktni brojač okretaja.
Jezgra dizajna je mikrokontroler.
Fotoelektrična brzina obrade uzorkovanja i jedinstven dizajn donose brojač okretaja superiornih performansi.
UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines.
This device is able to display results in RPM or revolution count.
This portable device is able to safely measure rotational objects through a non-intrusive method.
Main Features
1. Auto range
2. Up to 99999 display; overload diaplay, "OL"
3. RPM measurement and revolution count
4. Max/Min, data hold
5. Singal trigger/laser-on indication
6. Low battery/auto power off indication
7. LCD backlight
Specifications Range Resolution Accuracy
RPM measurement 10.0~9999.9 0.1 ±(0.04%+2)
10000~99999 1 ±(0.04%+2)
Counting measurement 0~99999 count 1 count
(120 rpm for 1s)
Sensor type Photodiodes and laser tubes
Target distance 50mm ~ 200mm
Measuring angle The angle between the laser and the surface being measured is less than 30 °
Display 5-digit segment code; 99999 max display
Drop test 1m
Working temperature and humidity 0 ° C to 50 ° C (no more than 80%RH)
Storage temperature and humidity -20 ° C to + 60 ° C (no more than 80%RH)
Protection rating IP65
Power supply 3 1.5V batteries (AAA)
Battery life Continuous work for 12 hours
Product color Red and grey
Product weight 85g (excluding battery)
Product size 183.8x56x34mm
Standard accessories Batteries, reflective paper
Standard individual packaging Blister, manual
