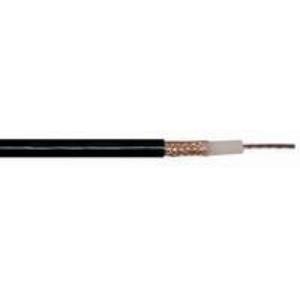

Kabel koaksijalni RG213 1m


Najpopularnije
Proizvođač: Ostali
Šifra: 0240065
Kataloški broj: RG213-100L_M
Jamstvo: Nema
Raspoloživost: Dobavljivo (Dobavljivo)
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod

14,00 Kn

Načini plaćanja online

Popust 10%
14,00 kn

Transakcijski račun
Popust 8%
14,31 kn

Maestro, MasterCard, Visa
Popust 6%
14,62 kn

AMEX, Diners, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
14,78 kn

ZABA Master/Visa 2-6 rata, Diners 2-6 rata, PBZ Maestro/Visa Inspire 7-12 rata
Popust 4%
14,93 kn

ZABA Master/Visa 7-12 rata, AMEX 2-6 rata, Diners 7-12 rata
Popust 2%
15,24 kn

AMEX 7-12 rata, Diners 13-24 rate
Popust se ne obračunava
15,56 kn

ZABA Master/Visa 13-24 rate, Diners 25-36 rata

Načini plaćanja u trgovini

Popust 10%
14,00 kn

Novčanice, Transakcijski račun
Popust 9%
14,16 kn

Maestro, MasterCard, Visa
Popust 6%
14,62 kn

AMEX, Diners, RBA Master/Visa 2-12 rata, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
14,78 kn

ZABA kartice 2-6 rata, ERSTE Maestro 2-6 rata, Diners 2-6 rata, PBZ Maestro/Visa Inspire 7-12 rata, *MB NET kartice 2-6 rata
Popust 4%
14,93 kn

ZABA Master/Visa 7-12 rata, AMEX 2-6 rata, Diners 7-12 rata
Popust 2%
15,24 kn

ERSTE Maestro 7-12 rata, Diners 13-24 rate, AMEX 7-12 rata, *MB NET kartice 7-12 rata
Popust se ne obračunava
15,56 kn

ZABA Maestro 7-12 rata, Diners 25-36 rata, ZABA Visa 13-24 rate, ZABA Master 13-36 rata

*MB NET kartice (Maestro, Visa, Mastercard) kojima je moguće plaćanje na rate izdane od KentBank, Slatinska banka, Primorska banka, Sberbank, Istarska kreditna banka, Jadranska banka, Kreditna banka Zagreb i Veneto banka



RG 213 U MIL kabel po metru

inner conductor o mm, material 7 x 0,75 Cu
insulation o mm, material 7,3 PE
1. screening, foil
2. screening braid, material 192 x 0,18 Cu, 98% coverage
jacked o mm, material/colour 10,3 PVC/black
attenuation at (20 oC in dB/100m):
100 MHz 6,6 dB
200 MHz 9,8 dB
300 MHz 11,7 dB
500 MHz 16,4 dB
800 MHz 22,2 dB
1000 MHz 25,7 dB
1350 MHz
1750 MHz
2050 MHz
impedance 50 ?
screening immunity
velocity factor v/c 0,66
capacity pF/m 100
DC-Ohm km, in/out 10
min. bending radius mm 50
coil packing 100 m
carton box packing -
spool packing -

Kliknite za više informacija o proizvodu
Osnovne karakteristike
Duljina [m]: 1

Za odabrani proizvod nije unesen niti jedan komentar.

Kabel koaksijalni RG213 1m Kabel koaksijalni RG213 1m RG 213 U MIL kabel po metru inner conductor o mm, material 7 x 0,75 Cu insulation o mm, material 7,3 PE 1. screening, foil 2. screening braid, material 192 x 0,18 Cu, 98% coverage jacked o mm, material/colour 10,3 PVC/black attenuation at (20 oC in dB/100m): 100 MHz 6,6 dB 200 MHz 9,8 dB 300 MHz 11,7 dB 500 MHz 16,4 dB 800 MHz 22,2 dB 1000 MHz 25,7 dB 1350 MHz 1750 MHz 2050 MHz impedance 50 ? screening immunity velocity factor v/c 0,66 capacity pF/m 100 DC-Ohm km, in/out 10 min. bending radius mm 50 coil packing 100 m carton box packing - spool packing -
