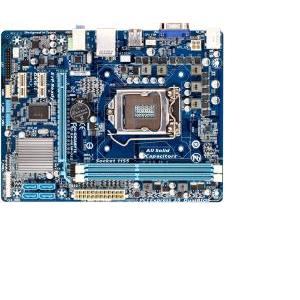

Matična ploča Gigabyte MB GA-H61M-DS2, S.1155, iH61, DDR3/1333, PCIe, VGA, S-ATAII, G-LAN, 8ch., mATX

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča Gigabyte MB GA-H61M-DS2, S.1155, iH61, DDR3/1333, PCIe, VGA, S-ATAII, G-LAN, 8ch., mATX

Proizvođač: Gigabyte
Šifra: 0081339
Kataloški broj: GA-H61M-DS2
Jamstvo: 24
Prosječna ocjena: Ocjena 5 5,00 | Glasova: 1
  Ocijeni ovaj proizvod


CPU
- Support for Intel Core i7/Intel Core i5/Intel Core i3/Intel Pentium/Intel Celeron processors in the LGA1155 package
- L3 cache varies with CPU

CHIPSET
- Intel H61 Express Chipset

MEMORY
- 2× 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (due to Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than 4GB)
- Dual channel memory architecture
- Support for DDR3 1333/1066/800 MHz memory modules
- Support for non-ECC memory modules

ONBOARD GRAPHICS
- Integrated Graphics Processor: 1× D-Sub port

AUDIO
- Realtek ALC887 audio codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver

LAN
1× Realtek 8111F chip (10/100/1000 Mbit)

EXPANSION SLOTS
1× PCI Express x16 slot, running at x16
2× PCI Express x1 slots
* All PCI Express slots conform to PCI Express 2.0 standard

STORAGE INTERFACE
- Chipset: 4× SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB
- Chipset: Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 4-pin ATX 12V power connector
4× SATA 3Gb/s connectors
1× CPU fan header
1× system fan header
1× front panel header
1× front panel audio header
2× USB 2.0/1.1 headers
1× parallel port header
1× serial port header
1× Clear CMOS jumper
BACK PANEL CONNECTORS
1× PS/2 keyboard port
1× PS/2 mouse port
1× D-Sub port
4× USB 2.0/1.1 ports
1× RJ-45 port
3× audio jacks (Line In/Line Out/Microphone)

I/O CONTROLLER
- iTE IT8728 chip

H/W MONITRING
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control
* Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install

BIOS
- 2× 32 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

OPERATING SYSTEM
- Support for MicrosoftWindows 7/Vista/XP

FORM FACTOR
- Micro ATX Form Factor (22.6×17.4 cm)

Osnovne karakteristike
Socket: 1155
Memorija: DDR3


*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja@protis.hr
Komentar
Datum: 8. travnja 2012.
Autor: karlo, Zagreb
Ocjena 5
Pozitivno Vrlo kvalitetna ploča. Podržava 22nm procesore. Odlična za bilo koji 1155SB procesor
Negativno Ništa
Negativno Odlična matična ploča za ovu cijenu, svakako preporučam.
