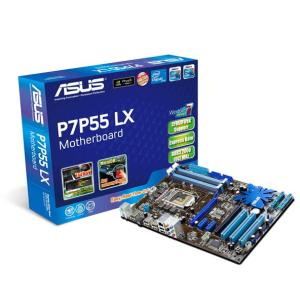

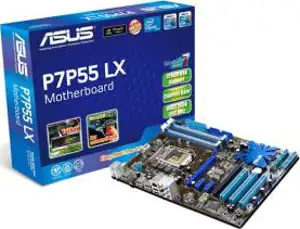

Matična ploča s1156 Asus P7P55 LX
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča s1156 Asus P7P55 LX
| Proizvođač: | Asus |
| Šifra: | 0080800 |
| Kataloški broj: | 90-MIBB80-G0EAY0KZ |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
P7P55 LX, 1156, Intel P55, DDR3, Broj utora 1600, 1600 MHz, PCI 3, PCIe x16 2, PCIe x1 2, PATA 1, SATA 6, RAID 0,1,1+0,5, 8-kanalni audio, 1x 10/100/1000 Ethernet, USB 2.0 6, ATX, Takt memorije 2200MHz O.C.; Asus Express Gate; EPU
CPU Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor
Supports Intel® Turbo Boost Technology
Chipset Intel® P55 Express Chipset
Memory 4 x DIMM, Max. 16 GB, DDR3 2200(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lists).
Expansion Slots 1 x PCIe 2.0 x16 (single at x16)
1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
2 x PCI Express 2.0 x1 slots (2.5GT/s)
3 x PCI
Multi-GPU Support Supports ATI® Quad-GPU CrossFireX™ Technology
Storage Intel® P55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
VIA VT6415 PATA controller
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
LAN Realtek® 8112L Gigabit LAN controller featuring AI NET 2
Audio VIA® VT1708S 8-Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Supports Jack-Detection, Multi-streaming
- ASUS Noise Filter
USB 14 USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Unique Features ASUS Exclusive Overclocking Features
- ASUS TurboV, ASUS Turbo Key
ASUS Exclusive Features
- Express Gate
- MemOK!
- ASUS EPU
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Stylish Heatsink Solution
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS Q-DIMM
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Overclocking Features Precision Tweaker
- vCore: Adjustable CPU voltage at 0.00625V increment
- vIMC: Adjustable IMC voltage at 0.05V increment
- vDRAM Bus: 11-step DRAM voltage control
- vPCH: 2-step chipset voltage control
- vCPU PLL: 4-step reference voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
- Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports 1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse (Green)
1 x Optical S/PDIF Output
1 x RJ45 port
8 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors 3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
1 x Power Fan connector
1 x Chassis Fan connectors (1x4-pin, 1x3-pin)
1 x Front panel audio connector
1 x S/PDIF Out header
1 x CD audio in
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel
1 x MemOK! Button
1 x COM connector
BIOS 16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
1 x UltraDMA 133/100/66 cable
2 x SATA cable(s)
I/O Shield
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
| Osnovne karakteristike | |
|---|---|
| Socket: | 1156 |
| Format ploče: | ATX |
| Memorija: | DDR3 |
| Broj utora: | 1600 |
| Max. memorije [GB]: | 16 |
| Takt memorije [MHz]: | 1600 |
| Chipset: | Intel P55 |
| Mreža: | 1x 10/100/1000 Ethernet |
| Utori | |
| PCI: | 3 |
| PCIe x1: | 2 |
| PCIe x16: | 2 |
| PATA: | 1 |
| SATA: | 6 |
| Konektori | |
| 24-pin ATX Power: | Da |
| 4-pin ATX 12V Power: | Da |
| CPU Fan Power: | 1 |
| Chasis Fan Power: | 1 |
| CD Audio In: | Da |
| S/PDIF Out: | Da |
| Front panel audio: | Da |
| Stražnji panel | |
| PS/2 keyboard: | 1 |
| PS/2 mouse: | 1 |
| RJ45: | 1 |
| eSATA: | 0 |
| Audio: | 8-kanalni audio |
| Ostale karakteristike | |
| Podrška za integrirani graficki sustav na procesoru: | Ne |
| RAID: |
0 1 1+0 5 |
| Ostalo: |
Takt memorije 2200MHz O.C. Asus Express Gate EPU |
