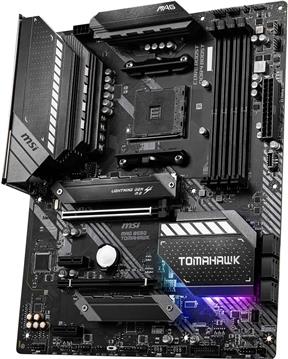

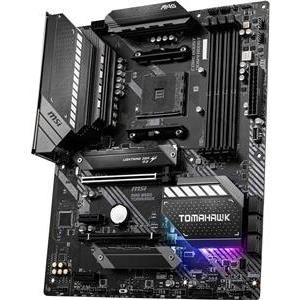

MB MSI AMD AM4 MAG B550 TOMAHAWK MAX WIFI
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili MB MSI AMD AM4 MAG B550 TOMAHAWK MAX WIFI
| Proizvođač: | MSI |
| Šifra: | 1385076 |
| Kataloški broj: | 7C94-043R |
| Jamstvo: | 36 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
Shape factor ATX
Socket AMD AM4
chipset AMD B550
CPU-Compatibility Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, without TDP limitation (Manufacturer-list)
RAM 4x DDR4 DIMM, dual PC4-40800U/DDR4-5100 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242)
external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125B), 5x jack, 1x toslink, 1x PS/2 Combo
Internal connectors 1x USB-C 3.0 Key-A Header (5Gb/s, B550), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0, B550), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 6x SATA 6Gb/s (B550), 1x TPM-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 6x fan 4-Pin, 1x fan/pump 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switches USB BIOS Flashback (external), LED switch (internal)
Audio 7.1 (Realtek ALC1200)
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, via M.2/E-Key), Bluetooth 5.2
RAID level 0/1/10 (B550)
Multi-GPU AMD 2-Way-CrossFireX (x16/x4)
Power connections1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 12 virtual phases (10+2), 7 real phases (5+2), PWM-Controller: RAA229004 (max. 8 phases)
MOSFETs CPU 10x 60A ISL99360
MOSFETs SoC 2x 60A ISL99360
Lighting RGB, 1 zone (chipset cooler)
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 2x M.2-passive cooler, ECC-support, onboard TPM 2.0 support (AMD fTPM)
| Osnovne karakteristike | |
|---|---|
| Socket: | AM4 |
| Format ploče: | ATX |
| CPU podrška: | AMD Ryzen |
| Memorija: | DDR4 |
| Broj utora: | 4 |
| Chipset: | AMD B550 |
| Konektori | |
| Pozicija ATX konektora: | Naprijed |
| Ostale karakteristike | |
| Boja: | Crna |
