PRODUCT

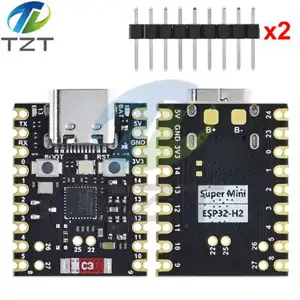

ESP32-H2 (Black Board 18Pin) Mini Development Board

DESCRIPTION
The ESP32-H2 Supermini development board is an IoT mini development board based on the ESP32-H2 Bluetooth chip.
ESP32-H2 is a low-power MCU system-on-chip (SoC) that supports:

2.4 GHz low-power Bluetooth

802.15.4 wireless communication

The chip integrates:

RISC-V 32-bit processor

low-power Bluetooth baseband

802.15.4 baseband

RF module

various peripherals

PARAMETERS
CPU
ESP32-H2, 32-bit RISC-V single-core processor
Clock frequency: up to 96 MHz

Bluetooth
Bluetooth LE 5.3

Ultra-low power
Deep sleep ? 7 µA

Board resources
320 KB SRAM

128 KB ROM

built-in 4 MB flash

16 KB cache

Chip model: ESP32H2FH4

Security features
Supports:

AES-128/256

SHA

RSA

ECC

ECDSA

KBC

digital signatures

Interfaces
2× I2C

3× SPI (SPI0/1 system, universal SPI2)

2× UART

19× GPIO

1× ADC

I2S

Onboard LEDs
Standard LED: GPIO15

RGB LED: GPIO8

EXTERNAL POWER SUPPLY
Ako je potrebna vanjska naponska opskrba, jednostavno spojiš:

plus vanjskog napajanja na pin 5V

minus (GND) na GND

Podržani napon: 3.3 V – 6 V

Važno upozorenje:

Kada je spojeno vanjsko napajanje, USB ne smije biti spojen.
Može biti ili USB ili vanjsko napajanje, ne oba istovremeno.

DOWNLOAD INSTRUCTIONS
Postupak ulaska u download mode na ESP32-H2:

Drži BOOT tipku

Pritisni RESET tipku

Otpusti RESET

Otpusti BOOT

Nakon toga ESP32-H2 ulazi u download mode.

Napomena:

Svaki put kad se uređaj spoji, potrebno je ponovno ući u download mode.
Ponekad se COM port može ponašati nestabilno i odspojiti se — možeš to prepoznati po zvuku priključivanja/odspajanja porta.
