POLISHED TO A MIRROR FINISH

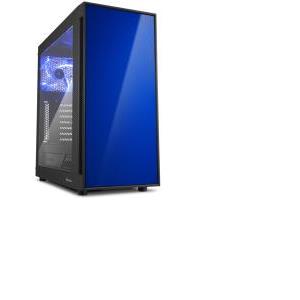

- With a front panel finish from metallic gloss automotive paint, the AM5 Window Midi ATX Tower from Sharkoon is an absolute eye-catcher in every gaming garage
- The transparent acrylic side panel lets everyone always admire everything under the hood of the robust case
- A convenient LED fan provides an atmospheric illumination level in the color versions red, blue or white
- The AM5 not just has plenty of showroom for the installed motor, but also clever solutions, allowing the connected cabling to disappear from the field of vision

SIMPLER INSTALLATION THANKS TO PRACTICAL CASE CONSTRUCTION
- The AM5 employs a sophisticated cable management system with numerous cable pass-throughs
- The entire cabling can be routed and hidden behind the mainboard without affecting airflow
- There is sufficient space inside the tunnel, on the case bottom, for a power supply with a maximum length of 20.5 cm
- Here, the power supply cabling can also be hidden from view
- The tunnel itself has air vents on its top and side for optimum cooling of hard drives
- A new CPU cooler with a maximum height of 16.7 cm can be easily installed through an opening in the mainboard tray
- Of course, there is still enough room for graphics cards up to 40 cm in length
- The front panel is not only visually dominant, but also clever and cableless designed
- It is always removable without cables getting in the way

PLENTY OF SPACE FOR HARD DRIVES
- There is plenty of room to install hard drives: Up to two 3.5" hard drives or 2.5" HDDs/SSDs can be mounted into the HDD cage, which is screwed tightly to the top of the tunne
- Another 3.5" hard drive finds space on the bottom of the tunnel below
- Behind the mainboard tray, there is space for two additional 2.5" HDDs/SSDs, mounted with help via the two 2.5" drive bay trays and secured using the enclosed thumbscrews
- If necessary, the HDD case can be positioned secured up against the fans in the front panel, thanks to the convenient thumbscrews and oval hole cutouts

OPTIMUM COMPONENT COOLING
- In order to ensure optimal airflow, the front panel has numerous air vents on both its sides
- Two 140 mm fans come pre-installed behind the front panel
- Alternatively, either up to three 120 mm fans, a 280 mm or 360 mm radiator, all of which with a height of up to 5.5 cm can be installed
- A 120 mm fan comes pre-installed on the rear panel, or switch it out with a 120 mm radiator
- All fans and radiators can be perfectly positioned thanks to the oval hole cutouts

QUICK ACCESS TO PERIPHERALS
- In order that the stylish front does not get in the way, the audio connectors for both the microphone and headphones as well as two USB 2.0 and USB 3.0 interfaces are located on the edge of the top panel
- The USB 3.0 ports are connected via a 19-pin mainboard connector

GENERAL
- Form Factor: ATX
- Expansion Slots: 7
- Interior Painting: Yes
- Tool-free Devices Installation: Yes
- Cable Management System: Yes
- Side Panel: Acrylic
- Weight: 7.5 kg
- Dimensions (L×W×H): 45.2×21.0×46.5 cm

I/O
- USB 3.0 (Top): 2
- USB 2.0 (Top): 2
- Audio (Top): Yes

DRIVE BAYS
- 3.5": 1
- 3.5" or 2.5": 2
- 2.5": 2

FAN CONFIGURATION
- Front Panel: 1× 140 mm fan (pre-installed) or radiator (optional)
- Rear Panel: 1× 120 mm fan (pre-installed)
- Top Panel: 3× 120 mm or 2× 140 mm fan (optional)

COMPATIBILITY
- Mainboard: Mini-ITX, Micro-ATX, ATX
- Max. Length Graphics Cards: 40.0 cm
- Max. Height CPU Cooler: 16.7 cm
- Max. Length Power Supply: 20.5 cm
- Max. Height Radiator incl. Fan (Front): 5.5 cm
