Sonda XSONIC AIRMAR B258, 000-13964-001
| Proizvođač: | Airmar |
| Šifra: | 1344357 |
| Kataloški broj: | 000-13964-001 |
| Jamstvo: | 12 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
1.238,00 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 38,21 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
B258 Bronze 1 kW Thru Hull 50/200 Khz Depth/Temp w/HS Fairing Block - Beamwidth: 50 kHz—15° x 21°, 200 kHz—3° x 5°. - Four Elements. - Q at 50 kHz—9, Q at 200 kHz—15. 9 Pin black connector: Cable length 10.1 m (33.0 ft)
Part Number: 000-13964-001

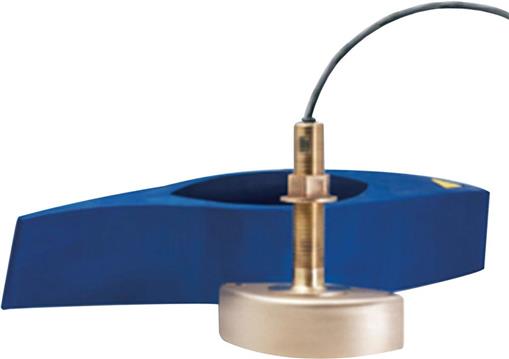

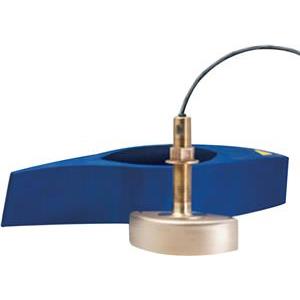

B258 Depth/Temperature Transducer
The B258 is a bronze, 1kW RMS, thru-hull, 50/200 kHz depth and temperature sensor. Ideal for use with our BSM-1 echosounder for fishing in shallow, medium and deep waters.
Key Features
High Performance
The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing.
Deep Water Fishing
Excellent for deep water bottom and structure fishing up to 500m/1640ft.
Depth/Temperature
Calculate depth and temperature from one compact sensor.
Easy To Install
Wide Operating Range
From 1 knot to 45 knots.
Highly Accurate Sounding
Provides extremely accurate echosounding data, even at speeds of over 30 knots.
Dual Frequency
Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
Bronze
Built to withstand the environment.
Transducer Specifications
Frequency 50/200 kHz
Power Rating 1kW
Speed Sensor No
Temperature Sensor Yes
Mounting Style Bronze Thru-Hull
Elements 4
Beamwidth @ -3dB 50 kHz—15° x 21°, 200 kHz—3° x 5°
