Teltonika TSW100
| Proizvođač: | Teltonika |
| Šifra: | 1382048 |
| Kataloški broj: | TSW100 |
| Jamstvo: | 12 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
142,20 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 4,39 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC

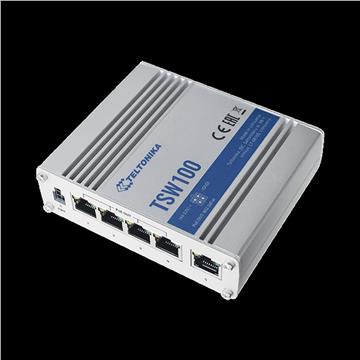

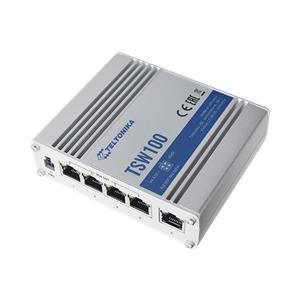

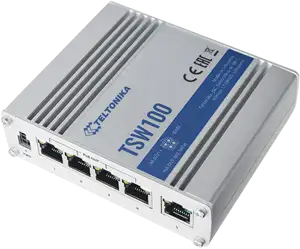

Teltonika TSW100 Switch 5p Gigabit PoE 802.3at/af, aluminiowa obudowa
TSW100
INDUSTRIAL UNMANAGED POE+ SWITCH
POE+
4 x PoE+ ports with 802.3af and 802.3at support
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
POWER BUDGET
Total power budget at PSE up to 120 W
ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
PLUG-N-PLAY
No additional configuration needed
Meet the TSW100
// TSW100 is the first industrial unmanaged switch from Teltonika Networks.
// Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
// Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
// It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
// Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
ETHERNET
LAN 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE
PoE ports Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 120 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
POWER
Connector 4-pin industrial DC power socket
Input voltage range 7-57 VDC
Input voltage range for PoE 44-57 VDC
Power consumption Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x LAN status LEDs
Power 1 x 4-pin DC connector
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Weight 350 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
| Osnovne karakteristike | |
|---|---|
| Portova: | 5 |
| Brzina prijenosa podataka: | 1 Gbps |
| Kućište: | Stolno/Ugradbeno |
| POE: | Da |
| Konektori | |
| SFP: | Ne |
