Teltonika TSW304 Industrial GSwitch Din RAIL
| Proizvođač: | Teltonika |
| Šifra: | 1391033 |
| Kataloški broj: | TSW304 |
| Jamstvo: | 12 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
177,60 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 5,48 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
TSW304
DIN RAIL SWITCH
Din Rail
Built-in, integrated DIN mounting
Compact
102 x 25 x 81.5 mm
Gigabit Ethernet
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages
Durability
Rugged aluminum housing
-40 °C TO 75 °C
A wide operating temperature range

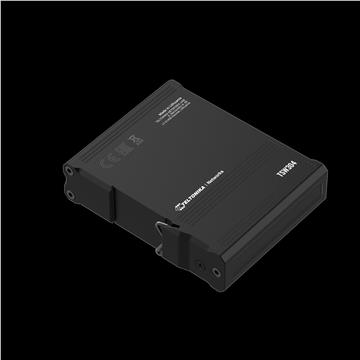

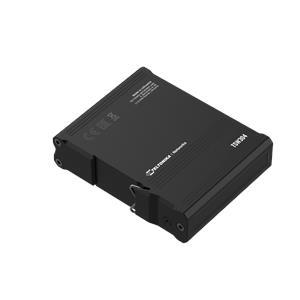

Meet the TSW304
// TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount.
// Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.
// Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.
// 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput.
// 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).
INTERFACES
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 8 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
POWER
Connector 2-pin power socket
Input voltage range 7 - 57 VDC; 9 - 40 VAC
PoE (passive) Passive PoE. Possibility to power up through first LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption Idle: 0.26 W / Max: 1.44 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 8 x LAN status LEDs
Power 1 x 2-pin power socket
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 102x25x81.5 mm
Weight 210 g
Mounting options Integrated DIN rail bracket, flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE, REACH, RoHS, WEEE
TSW304 UKCA, FCC, IC, CB, RCM
SAFETY
Standards EN IEC 62368-1:2020+A11:2020
| Osnovne karakteristike | |
|---|---|
| Portova: | 4 |
| Brzina prijenosa podataka: | 1 Gbps |
| Kućište: | Stolno/Ugradbeno |
| POE: | Ne |
| Konektori | |
| SFP: | Ne |
*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja[o]protis.hr
