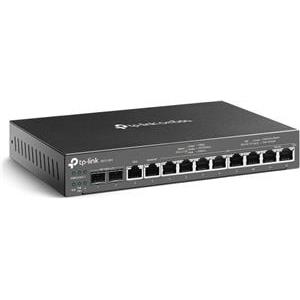

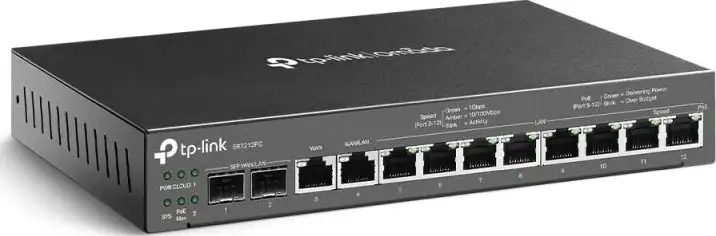

3 in 1 Router: Combines router, PoE switch and Omada controller together.Professional hardware: Dual core processor with 1GB DDR3 memory provides outstanding performance for up to 12x gigabit ports.Up to 4 × WAN Ethernet port: equipped with 2 × Gigabit SFP WAN/LAN ports, 1 × Gigabit RJ45 WAN port and 1 × Gigabit RJ45 WAN/LAN port.110W PoE Budget: 8 × 802.3at/af-compliant PoE+ RJ45 LAN ports deliver a total power of 110W*.Centralized management: cloud access and Omada app provide convenience and easy management.Highly secure VPN: supports IPsec VPN, OpenVPN and L2TP/PPTP VPN connections.Easy installation: compact fanless design for desktop and wall mounting.
HARDWARE FEATURESStandards and protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/ IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMPInterface • 2 gigabit SFP WAN/LAN ports• 1 gigabit WAN port• 1 gigabit LAN/WAN port• 8 gigabit LAN portsNetwork media • 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m)EIA/TIA-568 100? STP (max 100 m)• 100BASE-TX: Category 5, 5e UTP cable (max 100 m)EIA/TIA-568 100? STP (max 100 m)• 1000BASE-TX: T: Category 5, 5e, 6 UTP cable (maximum 100m)Fan quantity No fanButton Reset buttonPower supply 53.5VDC/2.43A Adapter PoE Budget 8 ports PoE+ output, 110 W PoE BudgetFlash 8Mb or +4GB EMMCDRAM 1 GB DDR3LED PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (speed, connection/action), LAN (speed, connection/action)Dimensions (W x D x H) 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm)Protection 4 kV surge protectionSteel housingDesktop/wall mountingMaximum power consumption • 133.2 W with PoE Max• 13.88 W without PoEPERFORMANCEConcurrent session 24,980New sessions / others 1,900NAT (static IP) 935.5 Mbps / 942.1 MbpsNAT (DHCP) 940.2 Mbps / 941.7 MbpsNAT (PPPoE) 913.1 Mbps / 935.2 MbpsNAT (L2TP) 545.0 Mbps / 912, 7 Mb/sNAT (PPTP) 523.0 Mb/s / 912.8 Mb/sIPsec VPN throughput AES256: 168.5 MbpsOpenVPN 34 MbpsThroughput L2TP VPN • Unencrypted: 845.3 Mbps• Encrypted: 333.2 MbpsPPTP VPN Throughput • Unencrypted: 1012.6 Mbps• Encrypted: 401.4 MbpsSpeed forwarding 66 bytes of packets 154,069 pps / 156,977 pps1518 bytes Packet forwarding speed 81,193 pps / 81,193 ppsBASIC FUNCTIONSWAN connection type • Static IP • Dynamic IP• PPPoE• PPTP• L2TPMAC Clone Change WAN MAC AddressDHCP • DHCP Server• DHCP Address Reservation• Multi-IP interfaces• Multi-Net DHCPIPv6 supportVLAN 802.1Q VLANIPTV IGMP v2/v3 proxyADVANCED FEATURESACL IP/Port/Protocol/Domain Name FilteringAdvanced Routing • Static Routing• Routing PolicyBandwidth Control IP/Port Based Bandwidth ControlLoad Balancing • Intelligent Load Balancing• Application Optimized Routing• Connection Backup• Web DiscoveryNAT • Multi-Net NAT• Virtual Server • NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnPSession Limit IP Based Session LimitVPNSSL VPN -IPsec VPN • 20 IPSec VPN tunnels• LAN-to-LAN, Client-to-LAN• Main, aggressive negotiation mode• Encryption algorithm AES128, AES192, AES256• IKE v1/v2• SHA1, SHA2 authentication algorithm• NAT traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)PPTP VPN • PPTP VPN Server• PPTP VPN Client (10)• 16 tunnels• PPTP with MPPE encryptionL2TP VPN • L2TP VPN Server• L2TP VPN Client (10)• 16 Tunnels• L2TP over IPSecOpenVPN • OpenVPN Server• OpenVPN Client (10 )§• 16 OpenVPN tunnelsSECURITYURL FilteringARP Inspection -Attack Protection • TCP/UDP/ICMP Protection against flooding• Block TCP scanning (Stealth FIN/Xmas/Null)• Block Ping from WANAccess control Source/Destination IP-based access controlAUTHENTICATIONOnline Authentication • No Authentication• Simple Password• Access Point (Local User / Coupon / SMS / Radius)• Outer Radius North• Outer Portal SeverMANAGEMENTOmada application Yes.Centralized management Yes.Cloud access Yes.Dynamic DNS service (Dyndns, No -IP)Maintenance • Web Management Interface• Remote Management• Export and Import Configuration• SNMP v1/v2c/v3• System Log SupportNon-touch maintenance -Management features • Automatic device discovery• Intelligent network monitoring• Abnormal event alerts• Unified configuration• Reboot schedule• Interception Portal Configuration• Management of up to 2 switches and 10 EAPsOTHERSCE, FCC, RoHS CertificationPackage Contents • ER7212PC• Charger• Power cable• Quick Setup GuideSystem Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/ 10• MAC OS, NetWare, UNIX or LinuxEnvironment • Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)• Storage temperature: -40 ° C to 70 °C (-40 °F to 158 °F)• Operating humidity: 10% to 90% non-condensing• Storage humidity: 5% to 90% non-condensing
