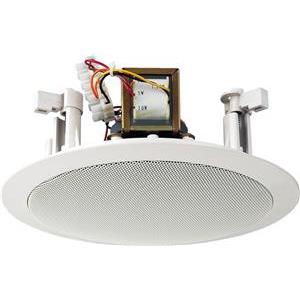

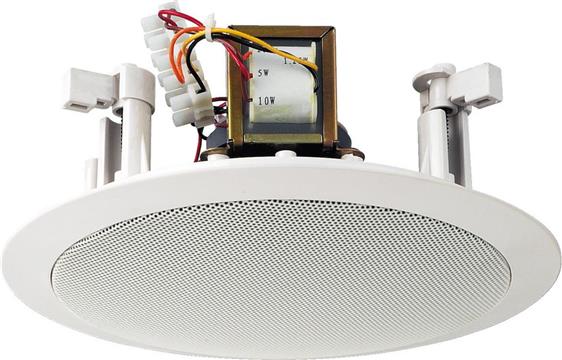

PA ceiling speaker

100 V line technique via audio transformer with power taps
Full range speaker with dual cone
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
For a ceiling thickness from 10 to 40 mm

-------------------------------------

EDL-26
Impedance (Z) -
Operating voltage 100 V
Frequency range 80-14000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 10/5/2.5/1.25 W
Peak music power output -
Sensitivity 86 dB/W/m
Max. rated SPL 95 dB
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -
Mounting cutout O200 mm
Mounting depth 75 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions O 230 mm x 85 mm
Outside diameter O230 mm
Width O230 mm
Height -
Depth 85 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0,922 kg
Sales unit 1
Type of speaker 165
